Pancake/Special Loadcell MK CELLS MK-LPX Merk : MK CELLS Type : MK Specials Load Cell Capacity : 10ton Warranty : 2 Years FEATURE : - Low profile load cell -…

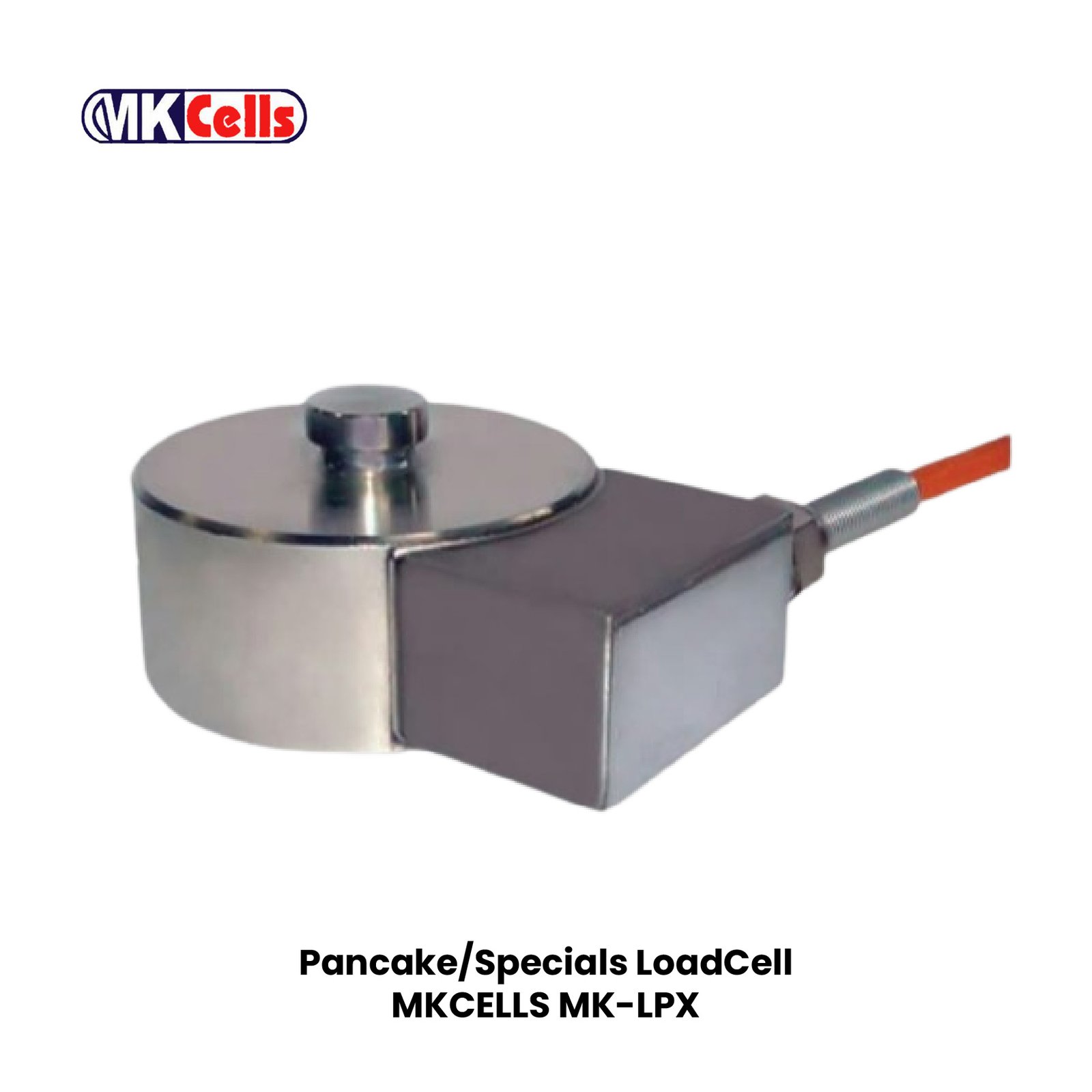

Pancake/Special Loadcell MK CELLS MK-LPX
Merk : MK CELLS
Type : MK Specials Load Cell
Capacity : 10ton
Warranty : 2 YearsFEATURE :
- Low profile load cell
- LPX is finished in a corrosion resistance electroless nickel plated steel
- 5 core high quality orange cable
- High precision and stability load cell
- Tank, hopper, silo application
- Hermetically sealed IP68 protectionSPECIFICATION :
- Rated capacities (Emax) : 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 30, 50t
- Rated Output : 2.00.05mV/V (0.05-1t); 2.00.02mV/V (2-5t)
- Total error : 0.05%F.S (0.05-1t); 0.3%F.S (2-5t)
- Creep error (30 min) : 0.05%F.S
- Zero balance : 1%F.S
- TC ZERO : 0.05%F.S/10C
- TC SPAN : 0.05%F.S/10C
- Input resistance : 40020
- Output resistance : 3523
- Insulation resistance : 5000M
- Temperature, compensated : -10C - +40C
- Temperature, operating : -30 - +70C
- Maximum safe overload : 150%F.S
- Ultimate overload : 180%F.S
- Excitation, recommended : 10 -12V DC
- Excitation, maximum : 15V DC
- Protection class : IP68
- Construction : Nickel Plated Steel
- Cable Lenght : 3m (0.05-1t), 6m (2-5t), 12m (10-50t)
- Diameter : 5mm
