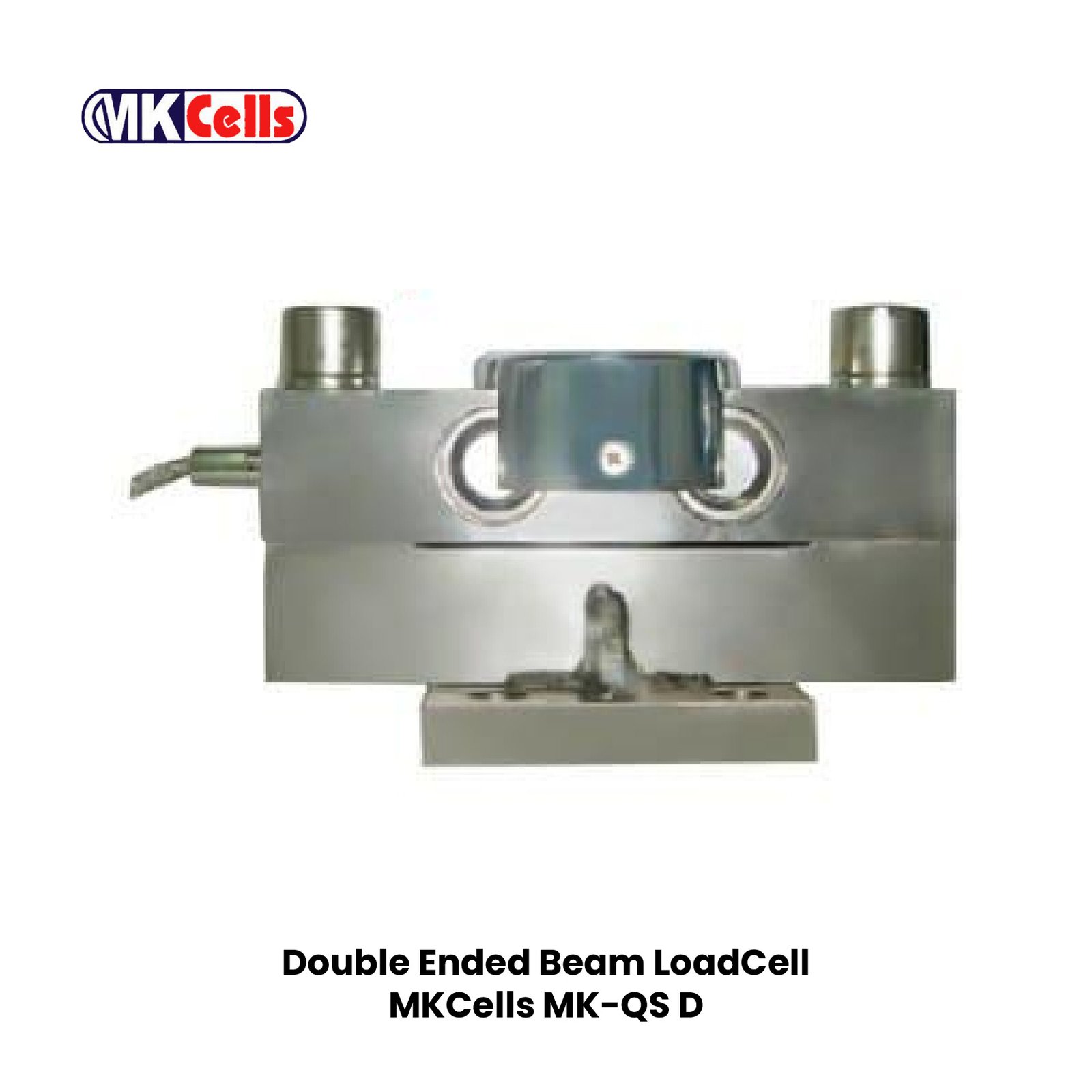

Double Ended Beam Loadcell MKCELLS MK-QS D
Merk : MK-Cells
Type : QS-D
Capacity : 30ton
Feature :
- High presicision, reliability and super stability
- Design of stainless steel ball, cup has super function in self-restoring corner pre-adjustment
- Anti-wallop and side force
- 5 core high quality orange cable
- Application to truck scale, railway scale hopper scale and other weighing equipment
Spesification :
- Rated capacities (Emax) : 50t
- Rated output : 2.0±0.002mV/V
- Accuracy class : C3
- Zero balance : ±1%F.S
- TC ZERO : ±0.02%/10°C
- TC SPAN :±0.02%/10°C
- Input resistance : 750±10Ω
- Output resistance : 702±3Ω
- Insulation resistance : ≥5000MΩ
- Temperature, compensated : -10°C~+40°C
- Temperature, operating : -30°C~+70°C
- Maximum safe overload : 120%F.S
- Ultimated overload : 200%F.S
- Exication, recommended : 10-20V DC
- Excitation, maximum : 15V DC
- Protection class : IP68
- Construction : Alloy steel
- Cable : length : 16m
- Diameter : 6mm
