GSC GST SCALES INDICATORS - 9602

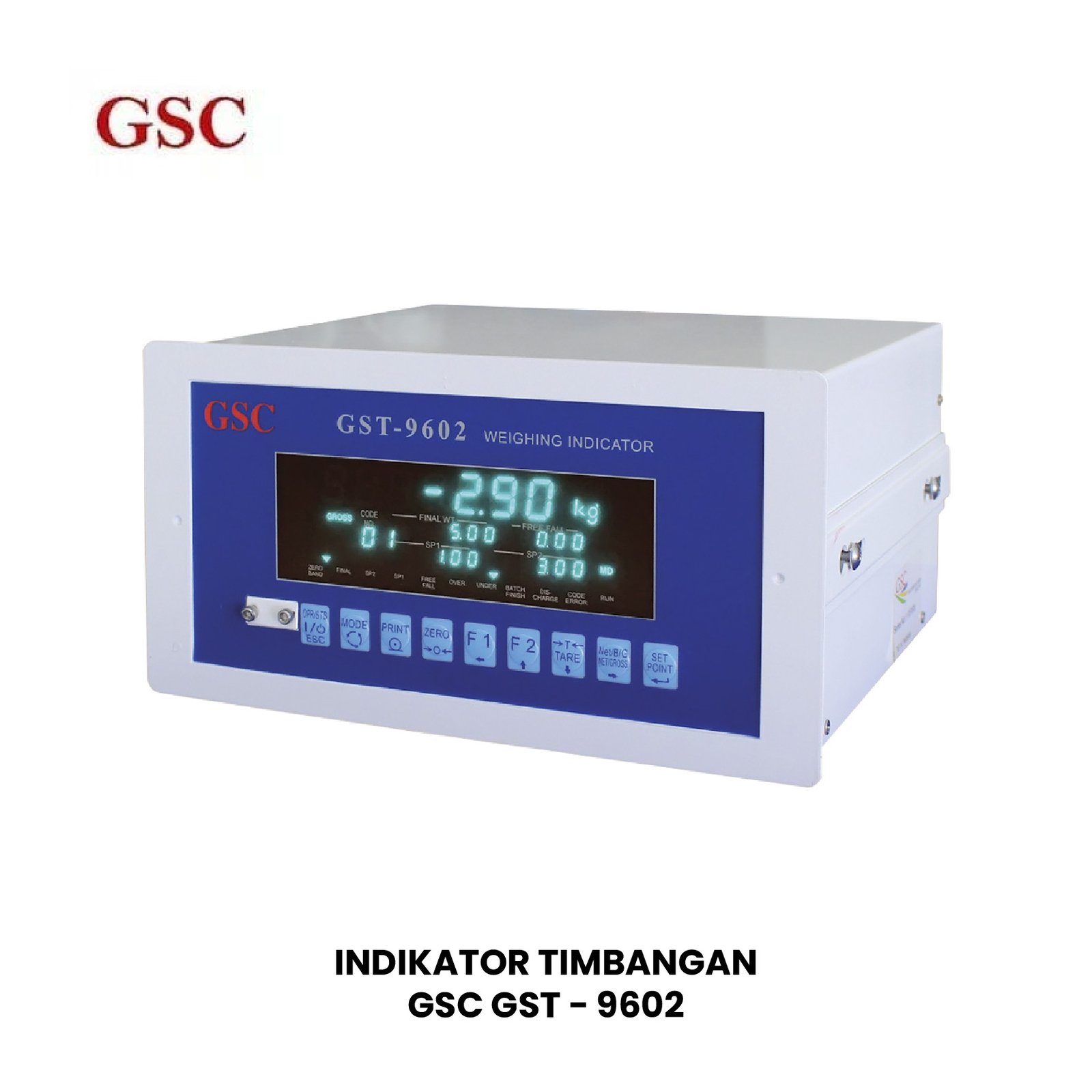

GST-9602: High Performance Weighing Indicators
The GST-9602 is a high-performance weighing indicator equipped with memory for 100 setpoints. Each block of information in the 100 code memory includes:
- Final Weight
- Free Fall (Automatic filling when material falls freely)
- Preliminary Weight
- Over and Under Weighing
- Accumulated Weight and Count Totals for each setpoint
This indicator is ideal for weighing applications that require precise weight limit settings and efficient data management.
OPTIONS
- RS-232 Communication interface.
- BCD parallel data output interface.
- Analog output 4 to 20 mA (0-10 V).
SPECIFICATIONS
| Load cell excitation | 12 VDC±5% |
| Load current | 280 mA (max.) 8 (350)ohm load cells max. |
| Input sensitivity | 0.6 uV/ D to 120 uV/ D |
| Zero adj. range | 0.35 mV to 24 mV |
| Span adjustment | full digital calibration |
| Input impedance | 10 MΩ |
| Display resolution | 10,000 |
| A/ D resolution | 100,000 counts |
| A/ D conv. rate | 70 times/ sec |
| A/ D conversion method | 3 phase tare integrating dual-slop type |
| Non linearity | +0.01% of full scale |
| Temp. coefficient | zero…±(0.2 uV±0.0008% of the initial offset voltage)oC span …±5 ppm/ oC of reading |
| Power source | 100, 110, 220, 240 50/60 Hz (factory installation) |
| Net weight | approx. 4.0 kg |
| Operating temperature | -5 o C to +40oC |
| Operation humidity | 95% RH max. (non-condensing) |
| Dimensions | 250 (W) x 210 (D) x 131 (H) mm |
| Panel cutout dimensions | 232+1.0/ -0 (W) x 121+0.8/ -(H) mm |
