double ended beam loadcell zemic hm9b Brand: Zemic type: double ended beam hm9b Made in: China Warranty: 1 Years capacity: 30ton Load Cell Zemic HM9B is available in a capacity…

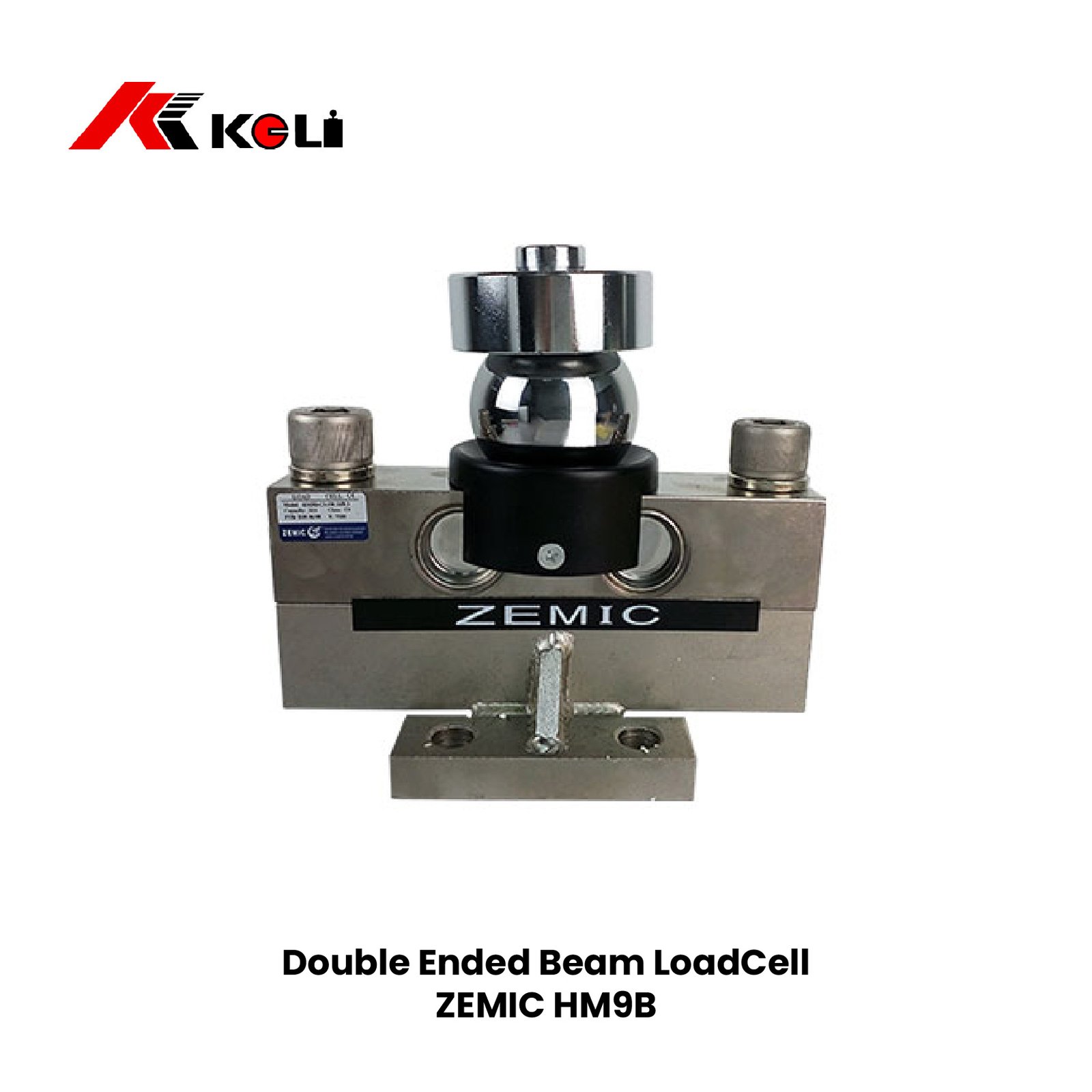

double ended beam loadcell zemic hm9b
Brand: Zemic
type: double ended beam hm9b
Made in: China
Warranty: 1 Years
capacity: 30ton Load Cell Zemic HM9B is available in a capacity of 10T to 50T, alloy steel construction, nickel coated, waterproof, oil resistant, waterproof and anti-corrosive and media make it suitable for all types of environment. Dual shear beam, suitable for electronic truck scales, train scales and other electronic heavy equipment. This is a safety and anti-explosive product that can be used in bad weather and dangerous areas. features: -Capacity: 10T T0 50T
-Alloy Steel Construction
-with Oiml Approval
-High Accuracy
-Easy Installation, Reliable Performance Specifications: capacity: 30ton
accuracy: c3
Approvals: Oiml R60 C3
Maximum Number of 30Verification Intervals: 3000N Max
Combined Error: 0.020%FS
creep 30min: 0.016%fs
Temperature Effect on Sensitivity: 0.011%FS/10
Temperature Effect on Zero: 0.015%FS/10
output sensitivity: 2.40.002mv/v
input resistance: 700 7
output resistance: 700 7
insulation resistance: 5000 (50v dc) m
Zero Balance: 1.5%FS
temperature, compensated: -10 ~ +40
Temperature, Allowed: -35 ~ +65
excitation, recommended: 5 ~ 12 (dc) v
Excitation, Max: 18 (DC) v
safe overload: 150%fs
ultimate overload: 300%fs
