Double Ended Beam Loadcell KELI QS A Rated load 5t, 10t, 15t, 20t, 25t, 30t, 40t, 50t Operating temperature rated range -10~+ 40ºС Accuracy class С2~С3 Temperature service range -30~+…

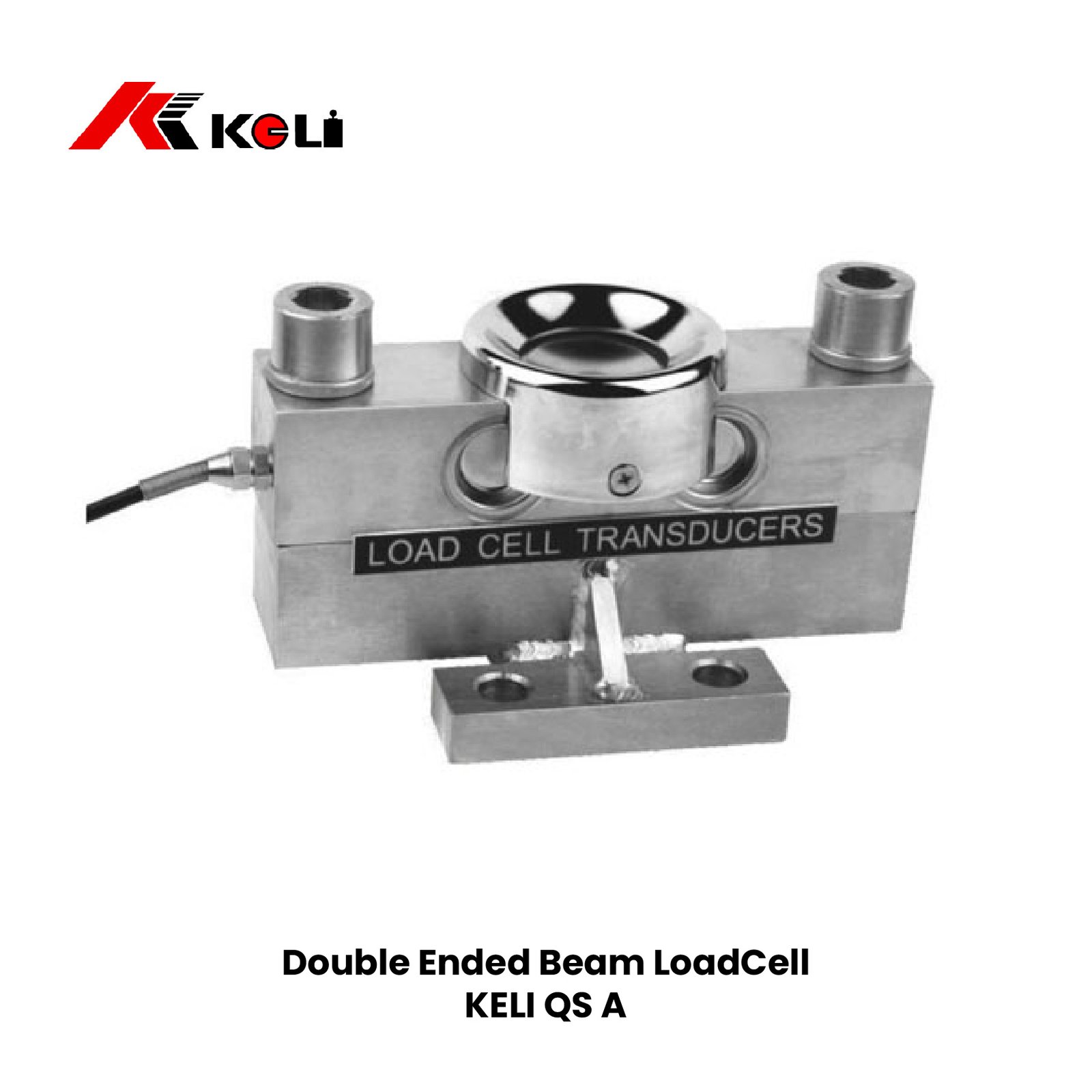

Double Ended Beam Loadcell KELI QS A
Rated load
5t, 10t, 15t, 20t, 25t, 30t, 40t, 50t
Operating temperature rated range
-10~+ 40ºС
Accuracy class
С2~С3
Temperature service range
-30~+ 70ºС
Sensitivity
2.0±0.002mV/V
Safety load limit
150% F.S
Non-linearity
±0.03% F.S
Breaking load
250% F.S
Hysteresis error
±0.03% F.S
Excitation rated range
10~12 V DC
Creep (30min)
±0.02% F.S
Protection class
IP67
TC ZERO
±0.02% F.S/10ºС
Material
Alloyed steel
TC INTERVAL
±0.02% F.S/10ºС
Stainless steel
Input resistance
750±10Ω
Cable
Output resistance
702±3Ω
Length
5t
10t
15t
20t
25t
30t
40t
50t
Insulation resistance
≥5000 mΩ
5.2m
4/8 m
4/10 m
4/10/12 m
4/10/12 m
12/16 m
12/16 m
4/12/16 m
