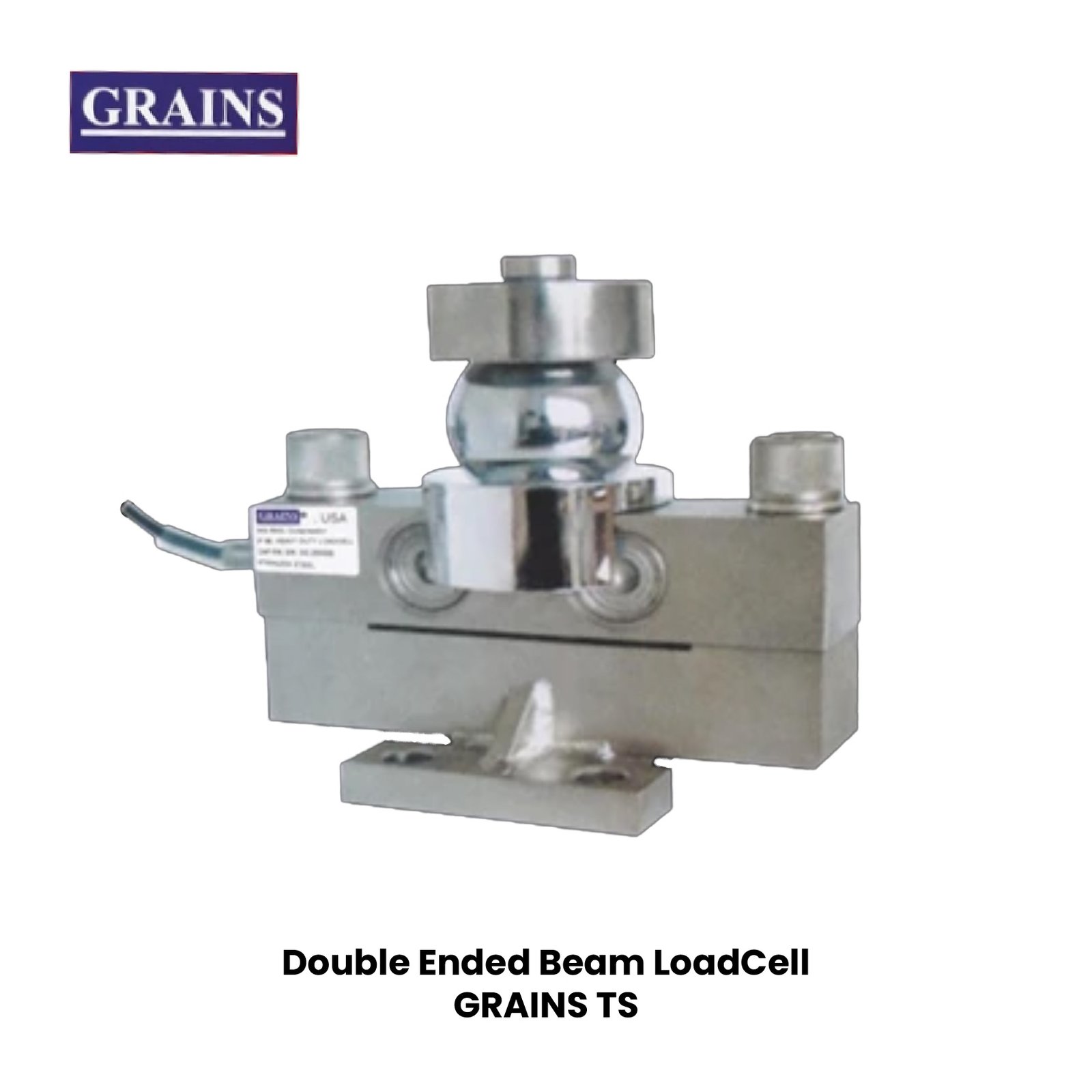

double ended beam loadcell grains ts
Brand: Grains
type: ts 30t
Made: USA
wirranty: 1years
capacity: 30t grains loadcell is available in a capacity of 30 tons.
Operating Temperature Range: -30 to+70
Output Value: 2.0 0.002MV/v Maximum safe overload; 150%R.C
Combined Errors: 0.03%F.S Ultimate Safe Overload; 200%of R.C
non-repetition: 0.02%F.S recommended excitation; 10 to 12V DC
Non-Linearity: 0.02%F. Maximum execitation; 15V DC
Hicteresis Error: 0.02%F.S Environmental Protection: IP68
zero balance: 1%f. A input impedance: 750 10
creep error (30minutes): 0.02%f.s Output impedance: 702 3; 703 5 (Cable 15m);
Temperature Effects on Zero: 0.02%F.S Isolation Resistance at 50V DC: 5000M
Temperature Effects on Output: 0.02%F.S Material: Nickel coated alloy steel;
Compensated Temperature Range: -10 to +40 16meters
