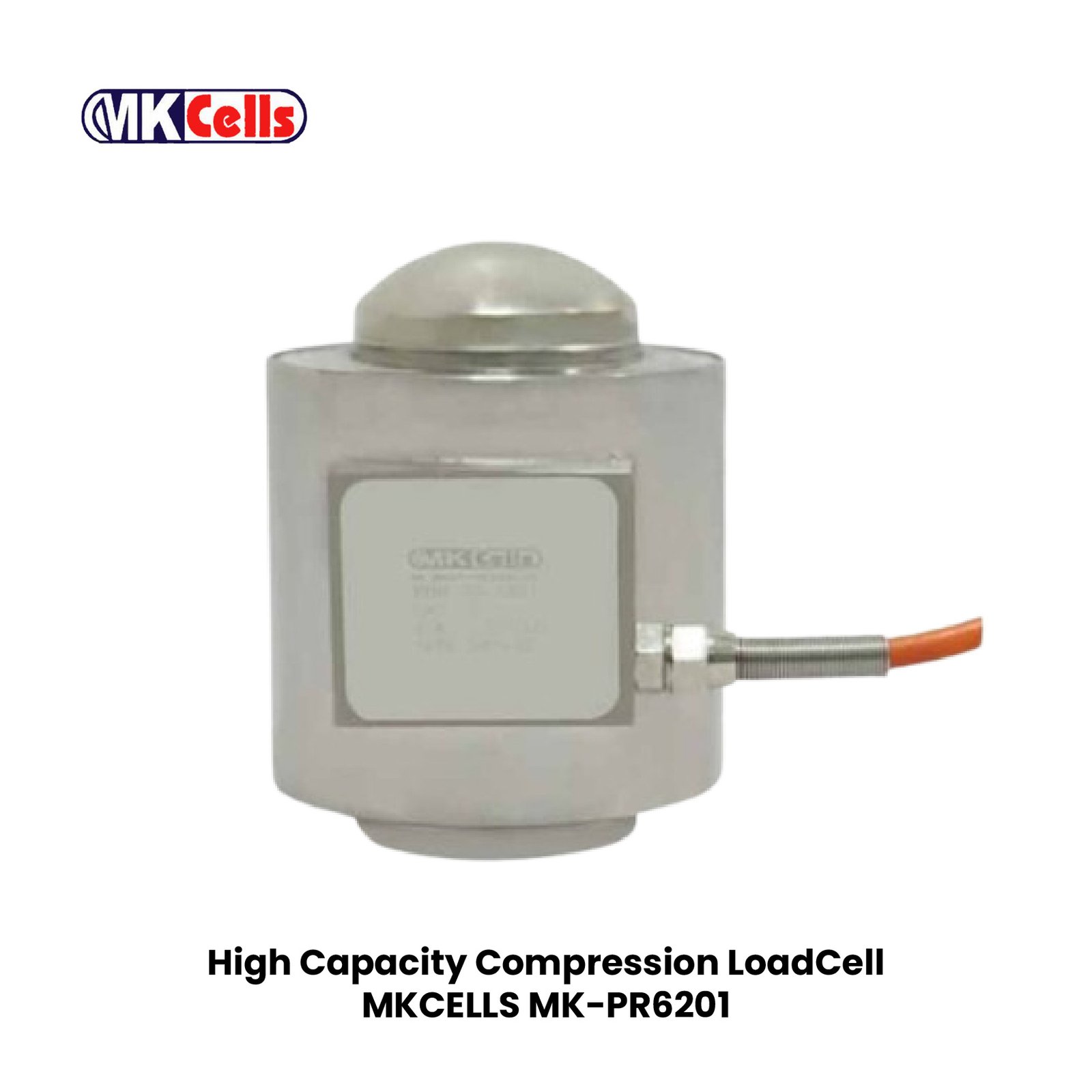

Compression Loadcell MK CELLS MK-6201 Merk : MK CELLS Type : MK PR-6201 Compression Load Cell Capacity : 15ton Warranty : 2 Years FEATURE : - Easy to install -…
Compression Loadcell MK CELLS MK-6201
Merk : MK CELLS
Type : MK PR-6201 Compression Load Cell
Capacity : 15ton
Warranty : 2 YearsFEATURE :
- Easy to install
- Well-Proven rocker pin design
- Easy corner adjustment by matched load cell output
- Wide temperature range
- Resistance against vibration
- Hemertically sealed IP68
- 5 core high quality orange cable
- Truck scale, railway scales applicationSPECIFICATION :
- Rated capacities (Emax) : 2, 3, 5, 15, 20, 25, 30, 40, 50ton
- Rated Output : 1.00.002mV/V
- Total error : 0.03%F.S
- Creep error (30 min) : 0.02%F.S
- Zero balance : 1%F.S
- TC ZERO : 0.03%F.S/10C
- TC SPAN : 0.03%F.S/10C
- Input resistance : 65010
- Out[put resistance : 6103
- Insulation resistance : 5000M
- Temperature, compensated : -10C+40C
- Temperature, operating : -30 - +70C
- Maximum safe overload : 150%F.S
- Ultimate overload : 200%F.S
- Excitation, recommended : 10-12V DC
- Excitation, maximum : 15V DC
- Protection class : IP68
- Construction : High Quality Alloy Steel
-Cable Lenght : 14m
- Diameter : 6mm
