Kabel N2XSEBY 3x185 mm /N2XSEBY 3x185mm / N2XSEBY 3 x 185 mm Supreme

Kabel N2XSEBY 3x185 mm /N2XSEBY 3x185mm / N2XSEBY 3 x 185 mm Supreme

Medium Voltage 12/20 (24) KV

-Ukuran : 3 x 185 mm 12/20 (24) KV

-Conductor diameter (approx) : 16.3 mm -Nominal insulation thickness : 5.5 mm

-Insulation diameter (approx) : 28.9 mm

-Nominal tape armour thickness : 0,5 mm

-Nominal outer sheath thickness : 3.4 mm

-Overall cable diameter (approx) : 79 mm

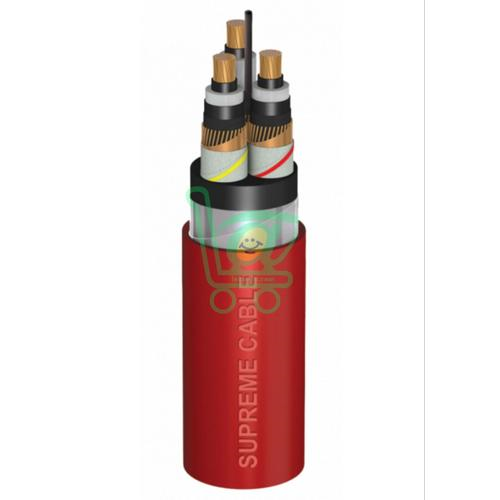

-Copper/Alumunium conductor,XLPE insulated,with or without water sealing, Copper wire/tape screened, Galvanized double steel tape armoured, PVC sheathed cable
