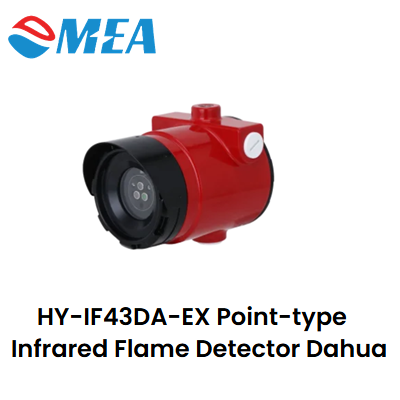

HY-IF43DA-EX Point-type Infrared Flame Detector Dahua

Dahua's

HY-IF43DA-EX Point-type Infrared Flame Detector is an infrared flame detection solution specifically designed to provide maximum protection in complex and challenging industrial environments. With advanced three-waveband detection technology, this device is able to detect fire quickly, accurately and reliably, thereby minimizing the risk of fire that could threaten the safety of your company's assets and operations.

Main Benefits of Dahua HY-IF43DA-EX:

• Fast and Accurate Fire Detection: Using infrared spectrum at 3.8 μm, 4.3 μm, and 5.0 μm with an adjustable 5-level sensitivity system, ensures precise fire detection and reduces the possibility of false alarms.
• High Durability and Explosion Resistant: Designed with ExdⅡC T6 Gb/ExtDA21 IP66 T80°C certification, this tool is safe to use in hazardous areas with a risk of explosion and is resistant to extreme environmental conditions.
• Optimal Performance in Various Environmental Conditions: The anti-fog feature and defrost heater on the sensor window enable the detector to work optimally even in low temperatures, high humidity or dusty environments.
• Easy and Flexible Integration: Equipped with various output methods such as RS485, relay, and 4–20mA current-loop, making it easy to integrate with existing fire monitoring and control systems.
• Practical and Efficient Installation: Two-cable technology combines power and signal cables thereby speeding up the installation process while reducing installation costs.
• Automatic Self-Test: The sensor's optical path self-test feature periodically ensures optimal detector performance and reduces the need for manual maintenance.

Uses and Functions: HY-IF43DA-EX is designed to detect the presence of fire and flame in industrial areas such as chemical plants, oil refineries, flammable material warehouses and other manufacturing facilities. With a fast response of less than 10 seconds and detection capability up to a distance of 55 meters (depending on the type of fuel), this device is very effective in providing early warning so that fire control actions can be taken immediately.

Materials and Materials: This device uses high quality materials that are resistant to harsh conditions and corrosion, and has international standard certification GB15631-2008 and GB3836 which guarantees safe use in hazardous areas.

Suitable For Use By:

• Industrial companies that need a reliable and explosion-proof fire protection system.
• Facilities and security managers who want to optimize early fire detection systems.
• Fire protection system installation contractor in high risk environments.
• Manager of warehouses and flammable material storage facilities.

Why Choose Dahua HY-IF43DA-EX?

• High Reliability: 3-waveband technology and automatic self-test feature guarantees consistent flame detection and minimal interference.
• Explosion-Proof and Extreme Environment Design: Safe to install in explosion-prone areas with high temperatures and humidity.
• Connectivity Flexibility:Easily integrates with various fire monitoring and control systems.
• Easy and Cost-Effective Installation:Two-wire technology speeds up installation and reduces overhead costs.
• International Standards Support: Meets various globally recognized safety and quality standards.

Don't compromise the safety of your operations and industrial assets. Choose Dahua's HY-IF43DA-EX Point-type Infrared Flame Detector as a reliable, fast and precise fire protection solution. Contact us immediately for further information and professional installation services. Protect your industry with the best fire detection technology from Dahua now!
